30 結果


X-365 Precision XY Gantry System

Standardized Modular Platform for Industrial Automation
  • Modular XY gantry system
  • Various travel ranges and configurations
  • High-performance ironless linear motors
  • Absolute encoders with nanometer resolution
  • Precision recirculating ball bearing guides
  • Thermally decoupled components
  • Comprehensive service offering
新製品

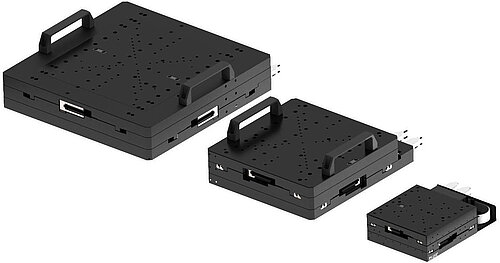

V-781 Ultra-Precision Direct Drive XY Stage

Ideal for Scanning, Measuring, and Imaging
  • Travel range X/Y: to 310 mm
  • Bidirectional repeatability X/Y: 0.07 µm
  • Max. payload: to 30 kg
  • Max. velocity: to 1000 mm/s
新製品

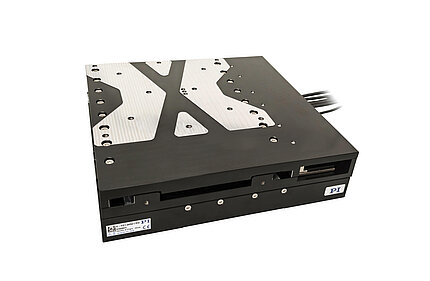

V-P01 High-Precision XY Stage

High Travel Accuracy and Stability, Linear Motors

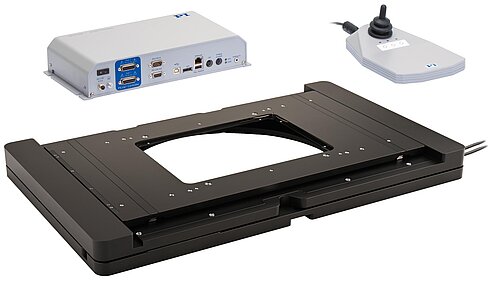

U-781 PILine® XY Stage System with Controller and Joystick

For Inverted Microscopes from Nikon, Olympus, Zeiss, and Leica
  • Travel range X/Y: 128 mm / 86 mm
  • Max. payload: 2.5 kg
  • Max. velocity: 120 mm/s

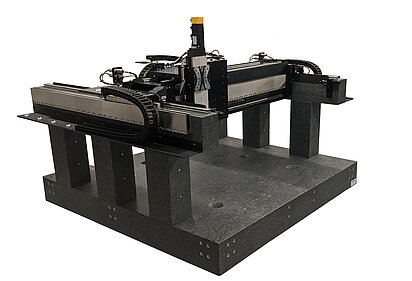

A-352 MGS Large Format Gantry System with Linear Motors

Robust Compact Design with Recirculating Ball Bearing Guides for High Load Capacity.

X-417 Integrated Multi-Axis System

XY Positioning System • Additional Options • Freely Configurable
  • Maximize efficiency and accuracy in industrial automation with the X-417 multi-axis system, tailored for laser micromachining, testing, and metrology.

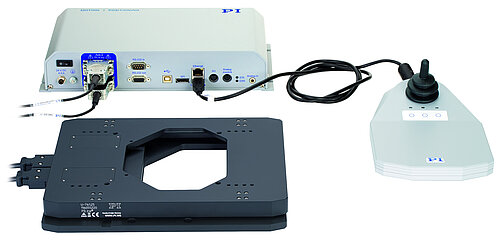

U-760 PILine® XY Stage System with Controller and Joystick

Compact, low vibration, low profile

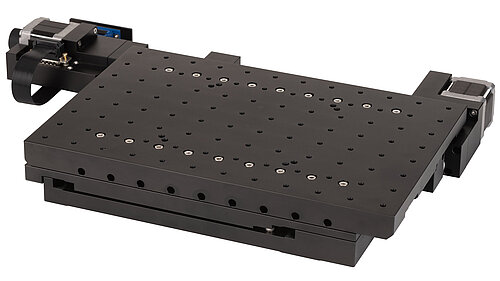

M-971 Motorized OEM XY Stage

Low Price with High Quantities

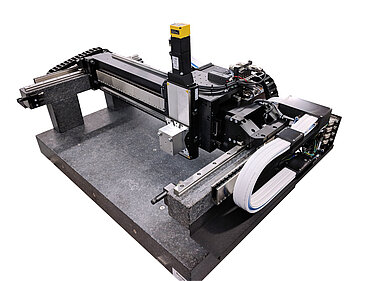

A-351 MGS Gantry System with Linear Motors

Robust Compact Design with Recirculating Ball Bearing Guides for High Load Capacity.

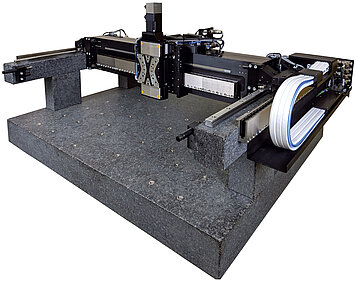

A-341 PIglide HGS Hybrid Gantry System

Hybrid Guide Design with Air Bearings and Recirculating Ball Bearing Guides for High Precision with Low Profile.

V-741 High-Precision XY Stage

High Run-Out Accuracy and Stability, 305 mm × 305 mm Travel Range, Linear Motors
  • Travel range X/Y: 305 mm
  • Bidirectional repeatability X/Y: 0.5 µm
  • Max. payload: 5 kg
  • Max. velocity: 200 mm/s

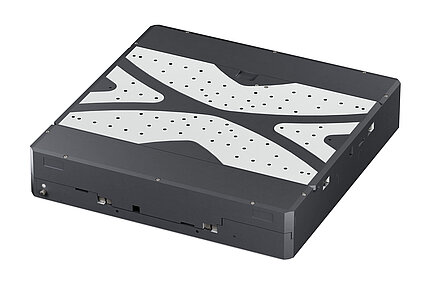

L-741 Precision XY Stage

High Run-Out Accuracy and Stability, 305 × 305 mm Travel Range
  • Travel range X/Y: 305 mm
  • Bidirectional repeatability X/Y: to 1 µm
  • Max. payload: 20 kg
  • Max. velocity: to 90 mm/s

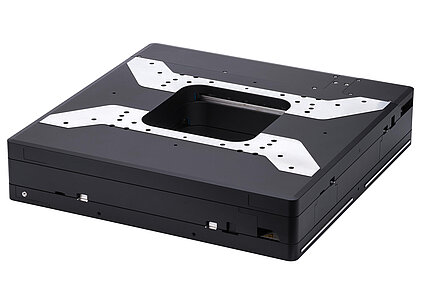

L-738 Precision XY Stage

Clear Aperture, High Run-Out Accuracy, and Stability
  • Travel range X/Y: 102 mm
  • Bidirectional repeatability X/Y: to 1 µm
  • Max. payload: 20 kg
  • Max. velocity: to 90 mm/s

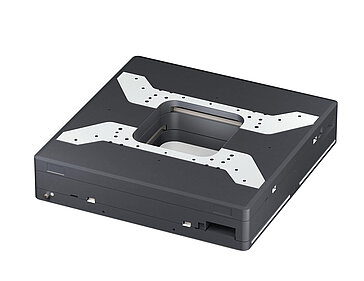

V-738 High-Precision XY Stage

Clear Aperture, High Run-Out Accuracy and Stability, Linear Motors

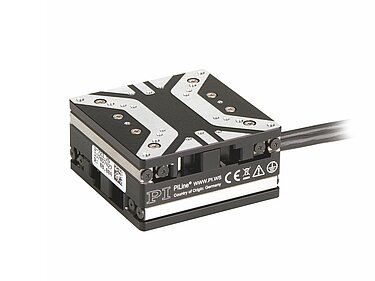

U-723 PILine® XY Stage

Compact XY Stage with Ultrasonic Piezo Motors
  • Travel range X/Y: 22 mm
  • Bidirectional repeatability X/Y: 0.2 µm
  • Max. payload: 0.5 kg
  • Max. velocity: 200 mm/s

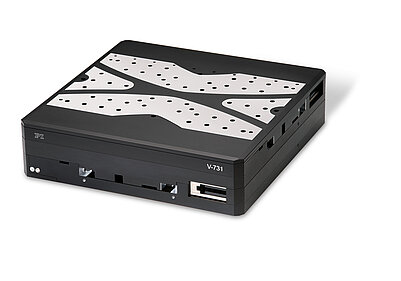

V-731 High-Precision XY Stage

High Run-Out Accuracy and Stability, Linear Motor
  • Travel range X/Y: 205 mm
  • Bidirectional repeatability X/Y: 7 µm
  • Max. payload: 5 kg
  • Max. velocity: 200 mm/s
