14 結果


F-572 High-Performance 3- to 6-Axis Photonics Alignment System

System Consisting of Ultraprecision Nanopositioning Linear Stage and ACS Controller
  • Travel range X/Y/Z: 60 mm
  • Rotation range θX/θY/θZ: 17°, 12°
  • Bidirectional repeatability X/Y/Z (10 % travel range): 150 nm
  • Bidirectional repeatability θX/θY/θZ (10 % travel range): 25 µrad
  • Max. load capacity: 2 kg
新製品

P-616.65S NanoCube® 6-Axis Piezo System

Compact Parallel-Kinematic Piezo System for Nanopositioning and Fiber Alignment
  • ±250 µm travel range in X, Y, and Z
  • Tip/tilt angle to ±26,2 mrad in θX, θY, θZ
  • Parallel-kinematic design for the highest stiffness in all spatial directions
  • Flexible mounting platform
  • Freely selectable center of rotation

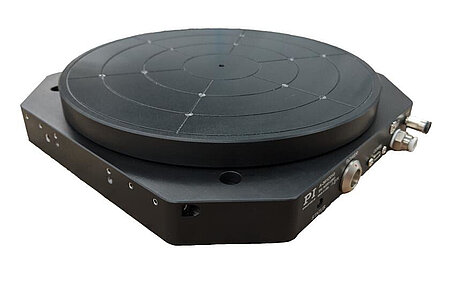

A-361 PIglide Air-Bearing XY Rotation Stage

High Performance • Cleanroom-Compatible • Low Profile

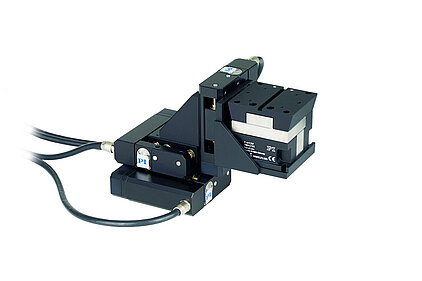

F-131 Powerful Fiber Alignment System

Ideal for Applications in Photonics
  • Ideal for Applications in Photonics
  • Long lifetime due to NanoCube®
  • Integrated sensor technology
  • Long travel ranges to 15mm
  • Inexpensive

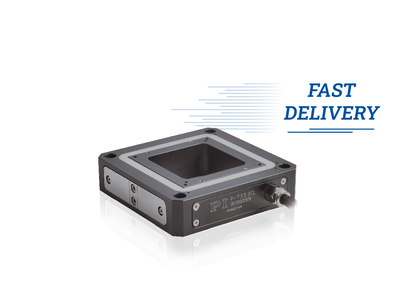

P-733.3 XYZ Piezo Nanopositioner

High-Precision XYZ Scanner with Aperture
  • Travel range X/Y: to 100 µm
  • Travel range Z: 10 µm
  • Max. payload: 5 kg

P-616 NanoCube® Nanopositioner

Compact Parallel-Kinematic Nanopositioner for Fiber Alignment and Scanning Microscopy
  • Travel range X/Y: 100 µm
  • Travel range Z: 100 µm
  • Bidirectional repeatability X/Y: 10 nm / 20 nm
  • Bidirectional repeatability Z: 10 nm

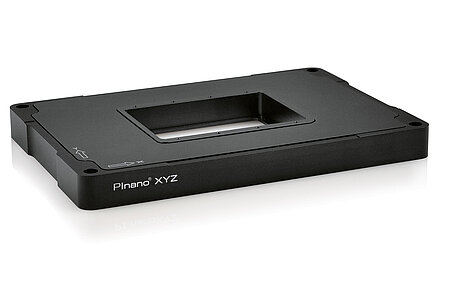

P-545.xR8S PInano® XY(Z) Piezo System

Inexpensive Nanopositioning System for High-Resolution Microscopy
  • Travel range X/Y: 200 µm
  • Travel range Z: 200 µm
  • Max. payload: 5 kg

P-545.xC8S PInano® Cap XY(Z) Piezo System

Capacitive Position Measuring for Super-Resolution Microscopy
  • Travel range X/Y: 200 µm
  • Travel range Z: 200 µm
  • Max. payload: 5 kg

P-545.3D8S PInano® Trak Piezo Tracking System

Fast XY(Z) Stage for High Dynamics Microscopy
  • Travel range X/Y: 70 µm
  • Travel range Z: 50 µm
  • Max. payload: 10 kg

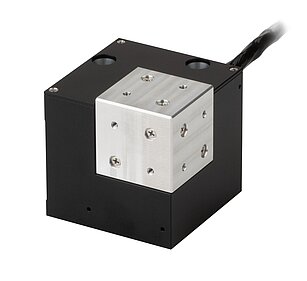

P-611.3 NanoCube® XYZ Nanopositioner

Compact Multi-Axis Piezo Positioner for Nanopositioning and Fiber Alignment
  • Travel range X/Y: 100 µm
  • Travel range Z: 100 µm
  • Max. payload: 1.5 kg

P-561 • P-562 • P-563 PIMars Nanopositioning Stage

High-Precision Nanopositioner for up to 3 Axes
  • Travel range X/Y: to 300 µm
  • Travel range Z: to 300 µm
  • Max. payload: to 25 kg

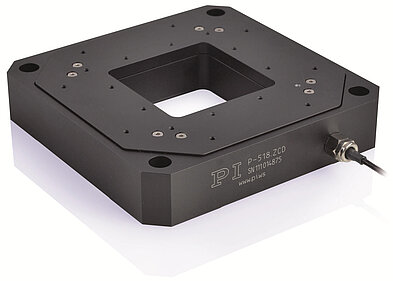

P-518 • P-528 Piezo Z/Tip/Tilt Stage

High Dynamics with Large Aperture
  • Rotation range θX/θY: to 2.4 mrad
  • Max. payload: 5 kg
  • Bidirectional repeatability θX/θY: to 0.05 µrad

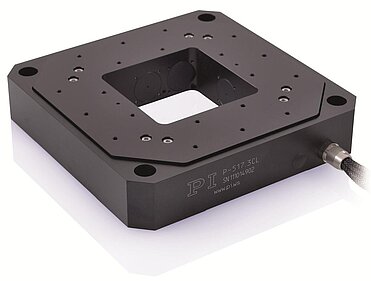

P-517 • P-527 Multi-Axis Piezo Scanner

High Dynamics Nanopositioner / Scanner with Direct Position Measuring
  • Travel range X/Y: to 200 µm
  • Travel range Z: 20 µm
  • Max. payload: 5 kg

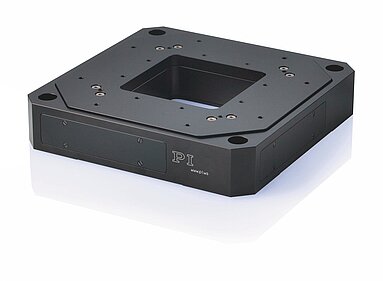

P-562.6CD PIMars 6-Axis Nanopositioning Stage

High-Precision Nanopositioner with 6 Degrees of Freedom
  • Travel range X/Y/Z: 200 µm
  • Rotation range θX/θY/θZ: 0,5 mrad
  • Unidirectional repeatability X/Y/Z: 2 nm / 2 nm / 3 nm
  • Bidirectional repeatability θX/θY/θZ: 0,1 µrad / 0,1 µrad / 0,15 µrad
  • Max. payload: 6 kg
