42 結果


N-310 NEXACT® OEM Miniature Linear Motor / Actuator

Compact, Fast, with Long Travel Range, PiezoWalk® Principle
  • Travel range 20 mm
  • Compact in size, inexpensive design
  • Resolution to 0.03 nm
  • Drive force up to 10 N
新製品

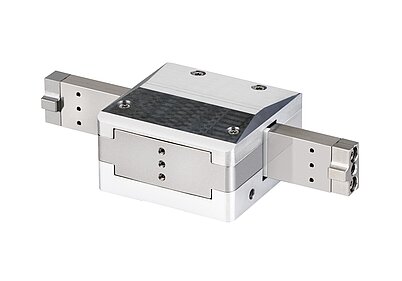

N-331.2xU Vacuum-Compatible PICMAWalk Walking Drive

OEM Walking Drive for Durable Applications with up to 12 mm/s Velocity and 50 N Drive Force

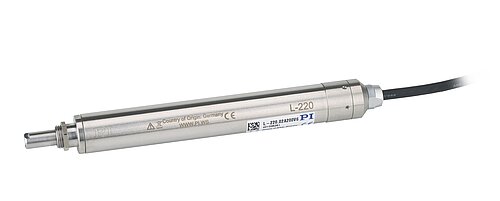

L-220 V6 High-Resolution Linear Actuator Suitable for Vacuum

Suitable for High Cycle Numbers
  • Travel range: 26 mm
  • Drive force: 125 N
  • Bidirectional repeatability: 2 µm
  • Max. velocity: 0.8 mm/s

P-841 Preloaded Piezo Actuators

Compact Actuators for High Loads and Forces, with Position Sensor
  • Outstanding lifetime due to PICMA® piezo actuators
  • Travel range to 90 µm
  • Compact housing
  • Push force capacity to 1000 N
  • Pull force capacity to 50 N
  • µs response time
  • Subnanometer resolution
  • Versions with spherical tip

P-131 PIRest Actuators

Active Shims with Nanometer Resolution and Long-Term Stability
  • Travel range: to 10 µm
  • Max. payload: 400 kg

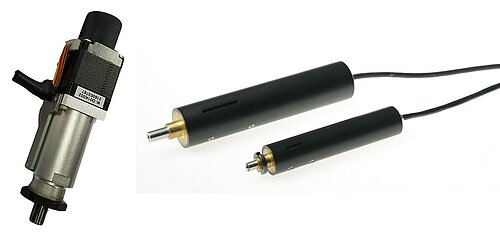

M-D01.11S • M-D02.26S • M-D01.10S • M-D02.25S Cost-effective Linear Actuator

Compact Precision Z Stage and with Compact Design

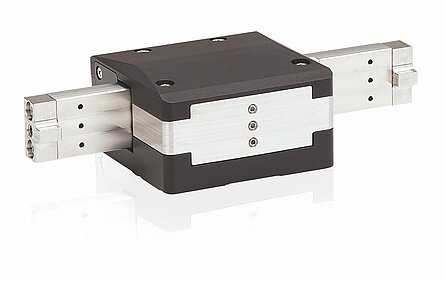

N-331 PICMAWalk Walking Drive

OEM Walking Drive for Durable Applications with up to 12 mm/s Velocity and 50 N Drive Force

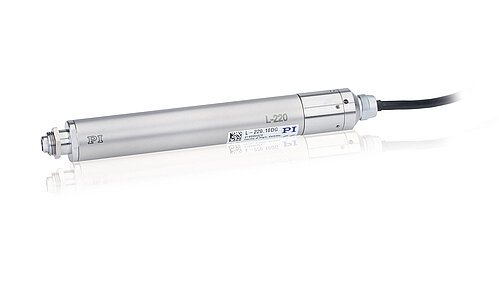

L-220 High-Resolution Linear Actuator

Suitable for High Cycle Numbers
  • Travel range: 13 mm to 77 mm
  • Drive force: 125 N
  • Bidirectional repeatability: 2 µm
  • Max. velocity: to 3.5 mm/s

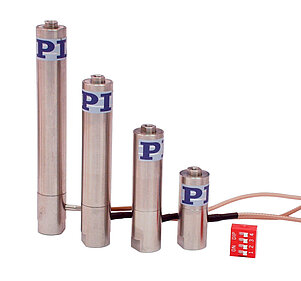

P-216 Preloaded PICA Power Piezo Actuators

Preloaded Piezo Actuators (HVPZT) with Sensor Option
  • Travel range to 180 µm
  • Push force to 4500 N
  • Pull force to 500 N
  • Subnanometer resolution
  • For vacuum/ high temperature

P-405 Picoactuator®

Multi-axis Actuators with Highly Linear Displacement
  • Crystalline actuator material
  • High dynamic response
  • Low electr. power requirement
  • Minimum length tolerances
  • Lead-free

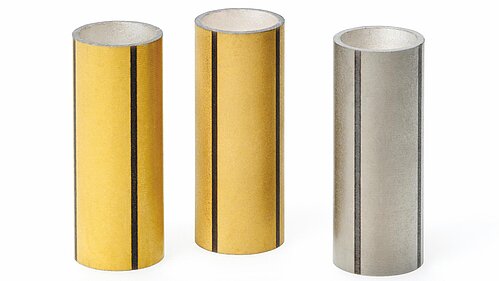

PT230 PT Piezo Scanner Tubes

High-Dynamics Operation with Low Loads
  • Piezo material: PIC255
  • Outer diameter: to 10 mm
  • Length: 30 mm

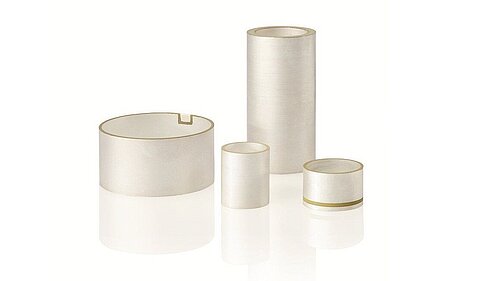

PT120 – PT140 Piezo Tubes

High-Dynamics Operation with Low Loads
  • Piezo material: PIC151
  • Outer diameter: to 40 mm
  • Length: to 40 mm

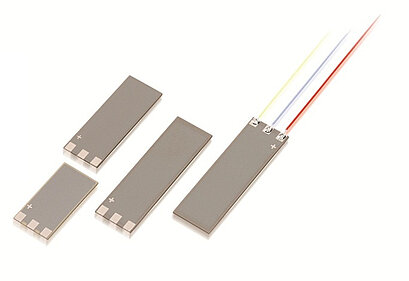

PICMA® Bender

PL112 – PL140 PICMA® Bender

All-Ceramic Bending Actuators with High Displacement

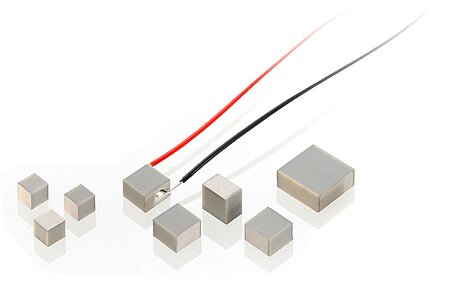

PICMA® Chip Multilayer Actuators

Miniature Multilayer Piezo Actuators
  • Superior lifetime
  • Ultracompact: from 2 mm × 2 mm × 2 mm
  • Ideal for dynamic operation
  • Microsecond response time
  • Subnanometer resolution
  • UHV-compatible to 10-9 hPa

PICA Power Piezo Actuators

For High-Dynamics Applications
  • Operating temperature up to 150 °C
  • High operating frequencies
  • High load capacity
  • Force generation up to 70 kN

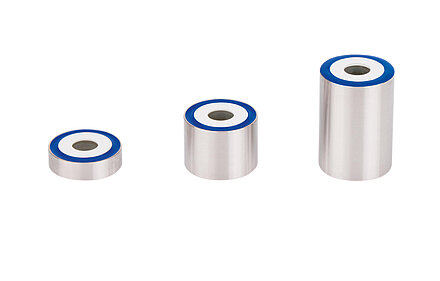

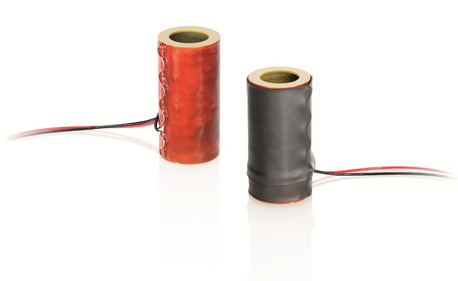

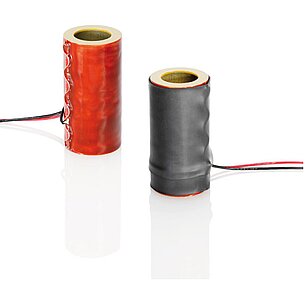

PICA Thru Ring Actuators

High-Load Piezo Actuators with Inner Hole
  • High load capacity
  • Extreme reliability: >109 cycles
  • Microsecond response time
  • Subnanometer resolution
  • Flexible thanks to wide range of designs
