16 結果


A-143 PIglide Miniature Linear Air Bearing Stage

High Performance • Cleanroom-Compatible • Option for Vertical Mounting

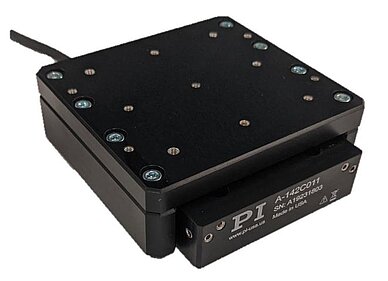

A-142 PIglide Voice Coil Linear Stage with Air Bearings

High Performance • Cleanroom-Compatible • Option for Vertical Mounting
  • High performance
  • Possible vertical mounting
  • Motion platform 75mm × 80mm
  • Travel ranges up to 10mm
  • Acceleration up to 20 m/s

A-68x PIglide Rotation Stage with Air Bearing

Large Aperture, Friction Free, Motorized
  • Friction-free, motorized
  • ⌀365mm motion platform
  • ⌀260 mm aperture
  • Eccentricity/flatness &lt
  • 300nm

A-41x PIglide FPC: Flat, Circular Air Bearing Modules

Friction-free, modular air bearings

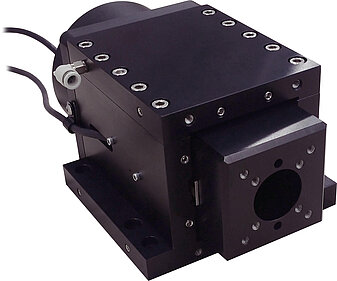

A-131 PIglide VC Voice Coil Linear Stage with Air Bearings

High-Performance Miniature Nanopositioning System
  • Miniature nanopositioning system
  • Clean room compatible
  • Travel ranges up to 25mm
  • Load capacity up to 30N
  • Acceleration up to 40m/s

A-62x PIglide RM Rotation Stage with Air Bearings

Friction-Free, Ideal for Indexing, Positioning, Scanning, Measuring Technology
  • Friction-Free
  • Motion platform 50mm to 300mm
  • Load capacity up to 4170N
  • Eccentricity/flatness &lt
  • 200nm
  • mounted vertically or horizontally
PIglide Manual XY Tip/Tilt Platform

A-60x.MTT PIglide Manual XY Tip/Tilt Platform

Compatible with A-60x and A-62x
  • Add-On For Rotary Stage
  • 4 degrees of freedom
  • Travel range to ±3mm, ±1.25°
  • Direct mount on A-60x / A-62x
  • Manual operation
PIglide RT Rotary Air Bearing Module

A-60x PIglide RT Rotary Air Bearing Module

Frictionless, Nonmotorized
  • Frictionless, non-motorized
  • Motion platform 50mm to 300mm
  • High load capacity up to 425kg
  • Eccentricity/flatness <200nm
  • mounted vertically or horizontally

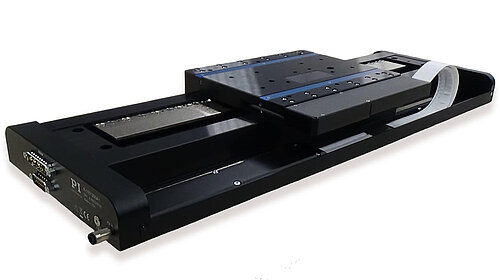

A-110 PIglide LC Linear Stage with Air Bearings

Inexpensive High Performance Nanopositioning Stage
  • High precision positioning
  • Inexpensive & clean room compatible
  • Motion platform 160mm × 200mm
  • Travel ranges up to 400mm
  • Load capacity up to 100N

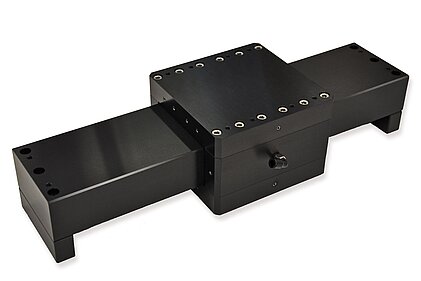

PIglide RB Linear Air Bearing Module

A-10x PIglide RB Linear Air Bearing Module

Friction Free, Ideal for Positioning, Scanning, Metrology
  • High-resolution positioning
  • Friction-free & clean room compatible
  • Motion platform 300mm × 300mm
  • Load capacity 775kg
  • Travel ranges up to 1m

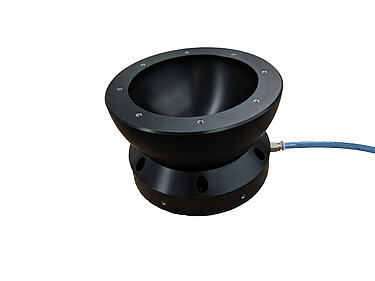

A-65x PIglide HB: Hemispherical Air Bearing Module

Friction-Free, Ideal for Rotational Motion on Three Axes
  • Ideal for Rotational Motion
  • Rotatable in three directions
  • Low inertia
  • Load capacity up to 635kg
  • tip/tilt range to ±45°

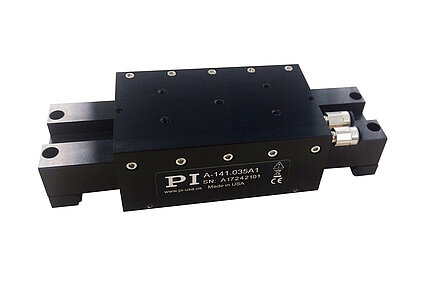

A-141 PIglide MB Miniature Linear Stage with Air Bearings

High Performance, Cleanroom Compatible, Customizable
  • High performance
  • Clean room compatible
  • Motion platform 57mm × 93mm
  • Travel ranges up to 35mm
  • Acceleration up to 3,5m/s

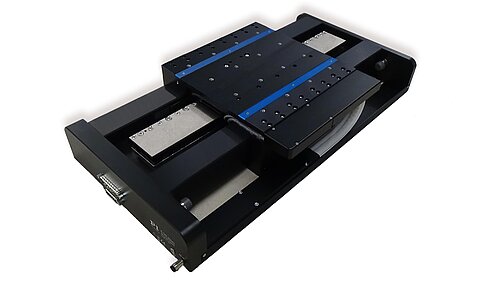

A-123 PIglide AT3 Linear Stage with Air Bearings

High Performance Nanopositioning Stage
  • High performance nanopositioning stage
  • Clean room compatible
  • Motion platform 210mm × 210mm
  • Travel ranges 50mm to 750mm
  • Resolution up to 1 nm

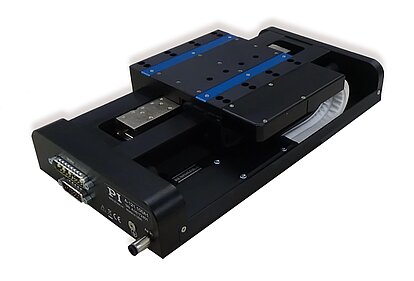

A-121 PIglide AT1 Linear Stage with Air Bearings

High Performance Small Footprint Nanopositioning Stage
  • High performance nanopositioning stage
  • small design
  • Motion platform 115mm × 115mm
  • Travel ranges up to 350mm
  • Resolution up to 1nm

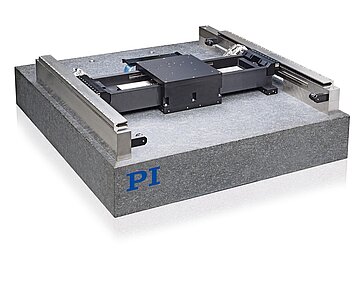

A-322 PIglide HS Planar Scanner with Air Bearing

XY Positioning System with 1 nm Resolution
  • XY air bearing stage, planar, high performance, travel to 1 m, linear motors, absolute encoder, nanometer precision. For high accuracy automation &amp
  • metrology.

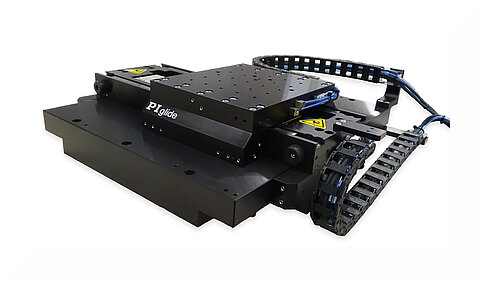

A-311 PIglide IS Planar Scanner with Air Bearing

High-Performance, Compact XY Nanopositioning System
  • Compact XY-nanopositioning system
  • High-precision positioning
  • Low profile
  • Travel ranges up to 300mm × 400mm
  • Load capacity up to 147N
