Product Finder - 6-Axis Robotics, Hexapods

PIVirtualMove

シミュレーションソフトウェアは、ワークスペースの制限とヘキサポッドの負荷容量をシミュレートします。したがって、購入する前でも、特定のヘキサポッドモデルがアプリケーションで発生する荷重、力、およびトルクを処理できるかどうか を確認できます。これによりシミュレーションツールでは、ヘキサポッドの位置と動き、およびピボットポイントといくつかの参照座標系が考慮されます。

>> シュミレーションツールについての詳細はこちら

ソフトウェア ファイル

PIVirtualMove

日付 / バージョン
1.8.0.1, 2026-07
zip - 150 MB
最大荷重

選択内容をご確認ください
最小移動量

選択内容をご確認ください
寸法

選択内容をご確認ください
駆動タイプ

選択内容をご確認ください
ベアリング タイプ

選択内容をご確認ください

21 結果


H-850.x2IV Vacuum-Compatible Hexapod

For Loads to 80 kg
  • Travel range X/Y/Z: ±50 mm / ±50 mm / ±25 mm
  • Rotation range θX/θY/θZ: ±15° / ±15° / ±30°
  • Unidirectional repeatability X/Y/Z: ±0.5 µm / ±0.5 µm / ±0.2 µm
  • Max. payload horiz./any orient.: to 80 kg / to 40 kg
  • Max. velocity X/Y/Z: to 2.5 mm/s
新製品

P-616.65S NanoCube® 6-Axis Piezo System

Compact Parallel-Kinematic Piezo System for Nanopositioning and Fiber Alignment
  • ±250 µm travel range in X, Y, and Z
  • Tip/tilt angle to ±26,2 mrad in θX, θY, θZ
  • Parallel-kinematic design for the highest stiffness in all spatial directions
  • Flexible mounting platform
  • Freely selectable center of rotation
新製品

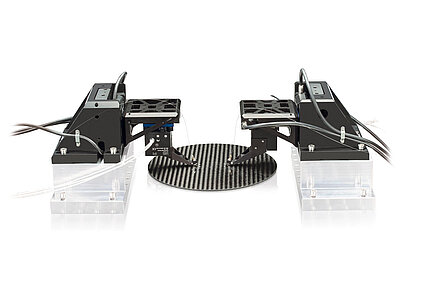

F-713.MAx Compact, High-Speed XYZ Photonics Alignment Systems

Single-Sided and Double-Sided, Fully Automated
  • High-precision XYZ photonics alignment system
  • Automated optimization for fibers & photonic devices
  • Automatic alignment in < 0.5 s
  • Integrated scan routines
  • Broad software support
新製品

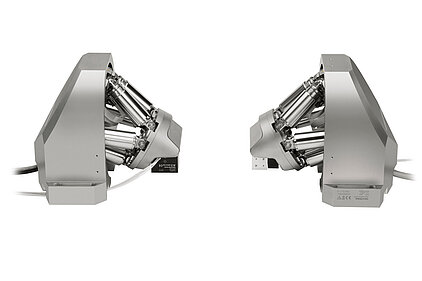

F-713.HAx • F-713.HUx Compact, High-Speed 6-DoF Photonics Alignment Systems

Single-Sided and Double-Sided, Upright and Low-Profile, Fully Automated Array Alignment Routines
  • Fully automated array alignment
  • Ultra-fast and precise
  • Single-sided and double-sided
  • Integrated scan routines
  • Broad software support

H-815 Hexapod for Industrial 24/7 Applications with Highest Precision Requirements

Compact, Robust, and Precise
  • Travel range X/Y/Z: ±20 mm / ±20 mm / ±10 mm
  • Rotation range θX/θY/θZ: ±9° / ±9° / ±16°
  • Unidirectional repeatability X/Y/Z: ±0.09 μm / ±0.09 μm / ±0.05 μm
  • Max. payload horiz./any orient.: 10 kg / 4 kg
  • Max. velocity X/Y/Z: 20 mm/s

H-811.x2IHP Miniature Hexapod

Fast, Compact, and Highly Precise
  • Travel range X/Y/Z: ±17 mm / ±16 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±21°
  • Unidirectional repeatability X/Y/Z: ±0.2 μm / ±0.2 μm / ±0.1 μm
  • Max. payload horiz./any orient.: 2.5 kg / 1 kg
  • Max. velocity X/Y/Z: 20 mm/s

H-840.G2IHP Hexapod

Inexpensive and High Precision
  • Travel range X/Y/Z: ±50 mm / ±50 mm / ±25 mm
  • Rotation range θX/θY/θZ: ±15° / ±15° / ±30°
  • Unidirectional repeatability X/Y/Z: ±0.3 μm / ±0.3 μm / ±0.1 μm
  • Max. payload horiz./any orient.: 30 kg / 10 kg
  • Max. velocity X/Y/Z: 2.5 mm/s

H-811.I2V Vacuum Compatible Miniature Hexapod

Compact and Highly Precise
  • Travel range X/Y/Z: ±17 mm / ±16 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±21°
  • Unidirectional repeatability X/Y/Z: ±0.15 μm / ±0.15 μm / ±0.06 μm
  • Max. payload horiz./any orient.: 5 kg / 2.5 kg
  • Max. velocity X/Y/Z: 10 mm/s

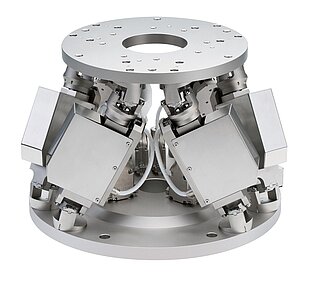

H-824.V Vacuum-Compatible Hexapod

Compact and Precise
  • Travel range X/Y/Z: ±22.5 mm / ±22.5 mm / ±12.5 mm
  • Rotation range θX/θY/θZ: ±7.5° / ±7.5° / ±12.5°
  • Unidirectional repeatability X/Y/Z: to ±0.4 μm / to ±0.4 μm / to ±0.10 μm
  • Max. payload horiz./any orient.: to 5 kg / to 2.5 kg
  • Max. velocity X/Y/Z: to 12.5 mm/s

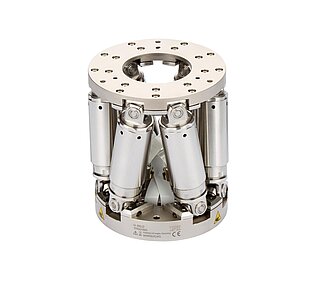

H-810.I2 Miniature Hexapod

High Precision in the Smallest Space
  • Travel range X/Y/Z: ±20 mm / ±20 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±30°
  • Unidirectional repeatability X/Y/Z: ±0.03 μm / ±0.03 μm / ±0.08 μm
  • Max. payload horiz./any orient.: 3 kg / 1.5 kg
  • Max. velocity X/Y/Z: 6 mm/s

H-811.S2 Miniature Hexapod

Fast and Compact for High Dynamics Applications
  • Travel range X/Y/Z: ±17 mm / ±16 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±21°
  • Unidirectional repeatability X/Y/Z: ±0.5 μm / ±0.5 μm / ±0.2 μm
  • Max. payload horiz./any orient.: 2.5 kg / 0.9 kg
  • Max. velocity X/Y/Z: 25 mm/s

H-811.F2 Miniature Hexapod

Ideal for Fiber Alignment
  • Travel range X/Y/Z: ±17 mm / ±16 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±21°
  • Unidirectional repeatability X/Y/Z: ±0.15 μm / ±0.15 μm / ±0.06 μm
  • Max. payload horiz./any orient.: 5 kg / 2.5 kg
  • Max. velocity X/Y/Z: 20 mm/s

H-825 Hexapod

Compact Design, for Loads to 30 kg
  • Travel range X/Y/Z: ±27.5 mm / ±25 mm / ±14 mm
  • Rotation range θX/θY/θZ: ±11.5° / ±10.5° / ±19°
  • Unidirectional repeatability X/Y/Z: ±0.5 μm / ±0.25 μm / ±0.1 μm
  • Max. payload horiz./any orient.: 30 kg / 15 kg
  • Max. velocity X/Y/Z: 2 mm/s

H-860 Motion Hexapod

Magnetic Direct Drive for High Velocity
  • Travel range X/Y/Z: ±7.5 mm / ±7.5 mm / ±7.5 mm
  • Rotation range θX/θY/θZ: ±4° / ±4° / ±4°
  • Unidirectional repeatability X/Y/Z: ±0.5 μm / ±0.5 μm / ±0.5 μm
  • Max. payload horiz./any orient.: 1 kg / 1 kg
  • Max. velocity X/Y/Z: 250 mm/s

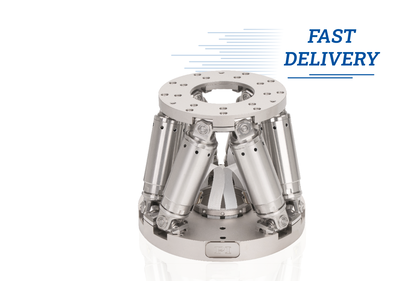

H-811.I2 • H-811.I2HS Miniature Hexapod

Fast, Compact, and Highly Precise
  • Travel range X/Y/Z: ±17 mm / ±16 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±21°
  • Unidirectional repeatability X/Y/Z: ±0.15 μm / ±0.15 μm / ±0.06 μm
  • Max. payload horiz./any orient.: 5 kg / 2.5 kg
  • Max. velocity X/Y/Z: 20 mm/s

H-850 Hexapod

For Loads to 250 kg
  • Travel range X/Y/Z: ±50 mm / ±50 mm / ±25 mm
  • Rotation range θX/θY/θZ: ±15° / ±15° / ±30°
  • Unidirectional repeatability X/Y/Z: to ±0.5 μm / to ±0.5 μm / ±0.2 μm
  • Max. payload horiz./any orient.: to 250 kg / to 50 kg
  • Max. velocity X/Y/Z: to 0.5 mm/s
