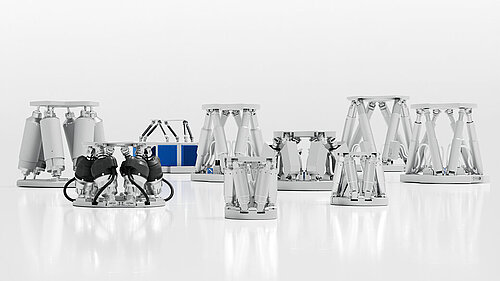

Hexapods

Product Widget - Grid

NEW

H-850.x2IV Vacuum-Compatible Hexapod

For Loads to 80 kg
  • Travel range X/Y/Z: ±50 mm / ±50 mm / ±25 mm
  • Rotation range θX/θY/θZ: ±15° / ±15° / ±30°
  • Unidirectional repeatability X/Y/Z: ±0.5 µm / ±0.5 µm / ±0.2 µm
  • Max. payload horiz./any orient.: to 80 kg / to 40 kg
  • Max. velocity X/Y/Z: to 2.5 mm/s
NEW

H-815 Hexapod for Industrial 24/7 Applications with Highest Precision Requirements

Compact, Robust, and Precise
  • Travel range X/Y/Z: ±20 mm / ±20 mm / ±10 mm
  • Rotation range θX/θY/θZ: ±9° / ±9° / ±16°
  • Unidirectional repeatability X/Y/Z: ±0.09 μm / ±0.09 μm / ±0.05 μm
  • Max. payload horiz./any orient.: 10 kg / 4 kg
  • Max. velocity X/Y/Z: 20 mm/s
NEW

H-811.x2IHP Miniature Hexapod

Fast, Compact, and Highly Precise
  • Travel range X/Y/Z: ±17 mm / ±16 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±21°
  • Unidirectional repeatability X/Y/Z: ±0.2 μm / ±0.2 μm / ±0.1 μm
  • Max. payload horiz./any orient.: 2.5 kg / 1 kg
  • Max. velocity X/Y/Z: 20 mm/s

H-840.G2IHP Hexapod

Inexpensive and High Precision
  • Travel range X/Y/Z: ±50 mm / ±50 mm / ±25 mm
  • Rotation range θX/θY/θZ: ±15° / ±15° / ±30°
  • Unidirectional repeatability X/Y/Z: ±0.3 μm / ±0.3 μm / ±0.1 μm
  • Max. payload horiz./any orient.: 30 kg / 10 kg
  • Max. velocity X/Y/Z: 2.5 mm/s

H-850.V Vacuum Compatible Hexapod

For loads to 80 kg
  • Vaccum Version
  • Range ±50/±50/±25mm
  • Rotation range ±15/±15/±30°

H-811.I2V Vacuum Compatible Miniature Hexapod

Compact and Highly Precise
  • Travel range X/Y/Z: ±17 mm / ±16 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±21°
  • Unidirectional repeatability X/Y/Z: ±0.15 μm / ±0.15 μm / ±0.06 μm
  • Max. payload horiz./any orient.: 5 kg / 2.5 kg
  • Max. velocity X/Y/Z: 10 mm/s

H-824.V Vacuum-Compatible Hexapod

Compact and Precise
  • Travel range X/Y/Z: ±22.5 mm / ±22.5 mm / ±12.5 mm
  • Rotation range θX/θY/θZ: ±7.5° / ±7.5° / ±12.5°
  • Unidirectional repeatability X/Y/Z: to ±0.4 μm / to ±0.4 μm / to ±0.10 μm
  • Max. payload horiz./any orient.: to 5 kg / to 2.5 kg
  • Max. velocity X/Y/Z: to 12.5 mm/s

H-810.I2 Miniature Hexapod

High Precision in the Smallest Space
  • Travel range X/Y/Z: ±20 mm / ±20 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±30°
  • Unidirectional repeatability X/Y/Z: ±0.03 μm / ±0.03 μm / ±0.08 μm
  • Max. payload horiz./any orient.: 3 kg / 1.5 kg
  • Max. velocity X/Y/Z: 6 mm/s

H-811.S2 Miniature Hexapod

Fast and Compact for High Dynamics Applications
  • Travel range X/Y/Z: ±17 mm / ±16 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±21°
  • Unidirectional repeatability X/Y/Z: ±0.5 μm / ±0.5 μm / ±0.2 μm
  • Max. payload horiz./any orient.: 2.5 kg / 0.9 kg
  • Max. velocity X/Y/Z: 25 mm/s

H-811.F2 Miniature Hexapod

Ideal for Fiber Alignment
  • Travel range X/Y/Z: ±17 mm / ±16 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±21°
  • Unidirectional repeatability X/Y/Z: ±0.15 μm / ±0.15 μm / ±0.06 μm
  • Max. payload horiz./any orient.: 5 kg / 2.5 kg
  • Max. velocity X/Y/Z: 20 mm/s

H-825 Hexapod

Compact Design, for Loads to 30 kg
  • Travel range X/Y/Z: ±27.5 mm / ±25 mm / ±14 mm
  • Rotation range θX/θY/θZ: ±11.5° / ±10.5° / ±19°
  • Unidirectional repeatability X/Y/Z: ±0.5 μm / ±0.25 μm / ±0.1 μm
  • Max. payload horiz./any orient.: 30 kg / 15 kg
  • Max. velocity X/Y/Z: 2 mm/s

H-860 Motion Hexapod

Magnetic Direct Drive for High Velocity
  • Travel range X/Y/Z: ±7.5 mm / ±7.5 mm / ±7.5 mm
  • Rotation range θX/θY/θZ: ±4° / ±4° / ±4°
  • Unidirectional repeatability X/Y/Z: ±0.5 μm / ±0.5 μm / ±0.5 μm
  • Max. payload horiz./any orient.: 1 kg / 1 kg
  • Max. velocity X/Y/Z: 250 mm/s

H-811.I2 • H-811.I2HS Miniature Hexapod

Fast, Compact, and Highly Precise
  • Travel range X/Y/Z: ±17 mm / ±16 mm / ±6.5 mm
  • Rotation range θX/θY/θZ: ±10° / ±10° / ±21°
  • Unidirectional repeatability X/Y/Z: ±0.15 μm / ±0.15 μm / ±0.06 μm
  • Max. payload horiz./any orient.: 5 kg / 2.5 kg
  • Max. velocity X/Y/Z: 20 mm/s

H-850 Hexapod

For Loads to 250 kg
  • Travel range X/Y/Z: ±50 mm / ±50 mm / ±25 mm
  • Rotation range θX/θY/θZ: ±15° / ±15° / ±30°
  • Unidirectional repeatability X/Y/Z: to ±0.5 μm / to ±0.5 μm / ±0.2 μm
  • Max. payload horiz./any orient.: to 250 kg / to 50 kg
  • Max. velocity X/Y/Z: to 0.5 mm/s

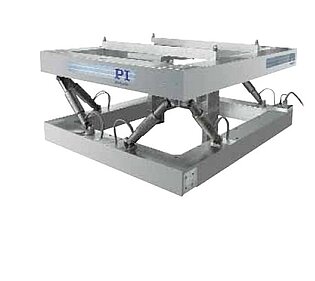

PI H-850KLAH

M-850KLAH Large-Aperture High-Load Hexapod

6-Axis Precision Positioning & Alignment System for Inspection Systems

H-900KSCO Fast 6-Axis Hexapod

For Loads to 60 kg
  • Compact and precise
  • Range ±150/±150/±85mm
  • Rotation range ±30/±30/±50°
  • MiM 5/5/3µm
  • Load capacity 60kg

H-824 Hexapod

Compact and Precise
  • Travel range X/Y/Z: ±22.5 mm / ±22.5 mm / ±12.5 mm
  • Rotation range θX/θY/θZ: ±7.5° / ±7.5° / ±12.5°
  • Unidirectional repeatability X/Y/Z: to ±0,25 μm / to ±0,25 μm / to ±0,10 μm
  • Max. payload horiz./any orient.: to 10 kg / to 5 kg
  • Max. velocity X/Y/Z: to 25 mm/s

H-820 Hexapod

Cost-Effective Hexapod
  • Travel range X/Y/Z: ±50 mm / ±50 mm / ±25 mm
  • Rotation range θX/θY/θZ: ±15° / ±15° / ±30°
  • Unidirectional repeatability X/Y/Z: ±1.5 μm / ±1.5 μm / ±0.5 μm
  • Max. payload horiz./any orient.: 20 kg / 10 kg
  • Max. velocity X/Y/Z: 20 mm/s

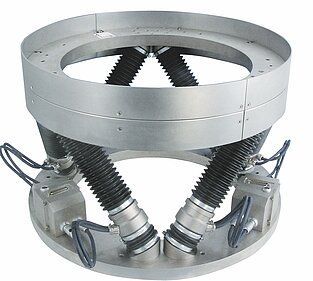

PI M-850KWAH

M-850KWAH Weather-Resistant Hexapod for Astronomy

Precision 6-Axis Positioner for Outdoor Applications

H-840 Hexapod 6-Axis Positioning System

Precise, Versatile, Fast, Excellent Value
  • Travel range X/Y/Z: ±50 mm / ±50 mm / ±25 mm
  • Rotation range θX/θY/θZ: ±15° / ±15° / ±30°
  • Unidirectional repeatability X/Y/Z: ±0.3 μm / ±0.3 μm / ±0.1 μm
  • Max. payload horiz./any orient.: to 30 kg / to 10 kg
  • Max. velocity X/Y/Z: to 2.5 mm/s

A-62x PIglide RM Rotation Stage with Air Bearings

Friction-Free, Ideal for Indexing, Positioning, Scanning, Measuring Technology
  • Rotation range: 360°
  • Max. payload: to 430 kg
  • Bidirectional repeatability: to 3 µrad
  • Max. velocity: to 2500 rpm
