Product Overview

PI Changzhou Products

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.

Stages with Magnetic Direct-Drive Linear Motor

V-817 High-Load Linear Stage

High Performance • Linear Motor • Cost Effective • Fast Delivery
  • Low profile (63 mm), width: 166 mm, long travel ranges (up to 813 mm)
  • Highly dynamic, maintenance-free linear motor and high-precision incremental linear encoder
  • Robust industrial design for a long lifetime
  • Permanent load capacity up to 600 N
  • Fast integration thanks to reference edge, easily XY stackable

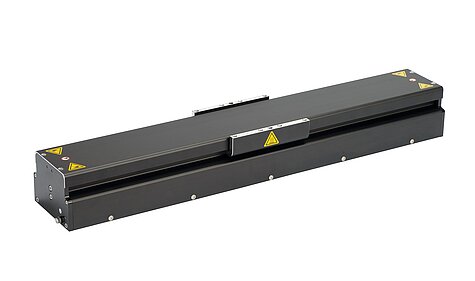

V-855 High-Speed Linear Stage

High Load Capacity • Cost Effective • Linear Motor
  • Long travel ranges (up to 800 mm) with narrow profile (width: 107 mm)
  • Highly dynamic, maintenance-free linear motor with velocities up to 4 m/s
  • Robust industrial design for a long lifetime
  • High-precision incremental or absolute linear encoder
  • Permanent load capacity up to 600 N
  • Ideal for gantry systems

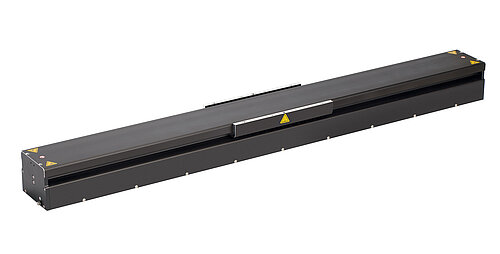

V-857 High-Speed Linear Stage

High Load Capacity • Cost Effective • Linear Motor
  • Long travel ranges (up to 800 mm) with narrow profile (width: 132 mm)
  • Permanent load capacity up to 1000 N
  • Highly dynamic, maintenance-free linear motor with velocities up to 5 m/s
  • Robust industrial design for a long lifetime
  • High-precision incremental or absolute linear encoder
  • Ideal for gantry systems

Stages with Stepper, DC & Brushless DC (BLDC) Motors

L-812 High-Load Linear Stage

Stepper or Servo Motor • Spindle Drive • Cost Effective
  • Width: 114 mm, travel range up to 610 mm
  • Precision ball screw, load capacity up to 50 kg
  • Stepper or servo motor
  • Compact design thanks to models with folded drivetrain
  • Models with holding brake for vertical mounting

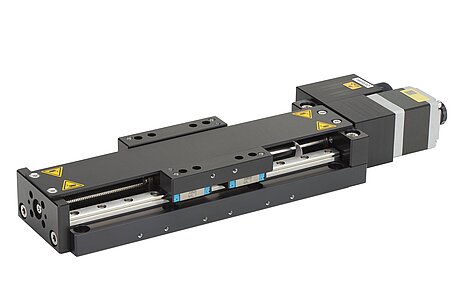

L-836 Stackable, Highly Compact, Universal Linear Stage

Versatile in Use • Drive Screw • Cost Effective • Suitable for Industrial Applications in X, XY, & XYZ

Do you have questions about our solutions? Our specialists are happy to help you!

Contact us today!
PI China Contact
