Precision Performance Positioning Solutions with Short Lead Times

Precise Positioning and Motion Control Solutions

With Swift Delivery Options

Thanks to our investments and planned expansion of production facilities we can offer a range of precise positioning solutions available with a short lead time.

The positioners listed below can be driven and controlled with ACS Motion Control solutions.

Quality solutions that fit your your exact engineering needs can be found in PI's broad portfolio of products.

Get in touch with >> Neil Beaumont, your local PI applications engineer, to discuss your exact requirements.

Speak with Neil Beaumont your local PI applications engineer

Get more information about PI’s positioning and motion control solutions in industrial applications.

Contact

When You Choose PI as a Partner You Also Benefit From

  • Software supported by all popular operating systems
  • On-site training and individual support
  • Individual consultation from trained specialists
  • Premium Technical Support
  • Gain reliability and save on development and process time
  • Global Experts in performance automation

Contact Us!

For More Information about PI’s Positioning and Motion Control Solutions in Industrial Applications Fill in the Form

Precision Positioning Solutions with ACS Motion Control

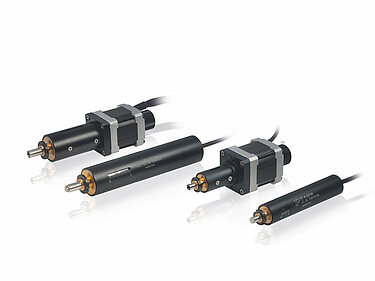

M-228 • M-229 High-Resolution Linear Actuator with Stepper Motor

Compact and Particularly Inexpensive
  • Travel range: 10 mm to 25 mm
  • Drive force: to 80 N
  • Unidirectional repeatability: 2 µm
  • Max. velocity: to 4 mm/s

L-812 High-Load Linear Stage

Stepper or Servo Motor • Spindle Drive • Cost Effective
  • Width: 114 mm, travel range up to 610 mm
  • Precision ball screw, load capacity up to 50 kg
  • Stepper or servo motor
  • Compact design thanks to models with folded drivetrain
  • Models with holding brake for vertical mounting

L-836 Stackable, Highly Compact, Universal Linear Stage

Versatile in Use • Drive Screw • Cost Effective • Suitable for Industrial Applications in X, XY, & XYZ

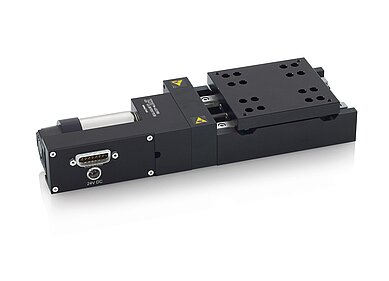

M-403 Linear Stage

Inexpensive, Reliable, Precise
  • Inexpensive, cost-optimized design for precise positioning
  • Travel ranges from 25 to 200 mm
  • Resolution to 0.018 µm
  • Minimum incremental motion to 0.2 µm
  • Preloaded precision threaded spindle
  • Higher loads with M-414

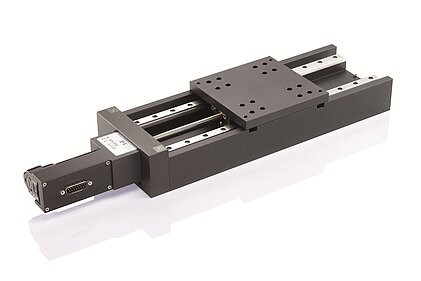

M-414 Precision High-Load Linear Stage

High Cycle Numbers, Inexpensive
  • Use of precision components
  • Flexible modular system M-403, M-414
  • Travel ranges from 100 to 300 mm
  • Recirculating ball screw provides high velocity and long lifetime
  • Minimum incremental motion 0.1 µm

V-817 High-Load Linear Stage

High Performance • Linear Motor • Cost Effective • Fast Delivery
  • Low profile (63 mm), width: 166 mm, long travel ranges (up to 813 mm)
  • Highly dynamic, maintenance-free linear motor and high-precision incremental linear encoder
  • Robust industrial design for a long lifetime
  • Permanent load capacity up to 600 N
  • Fast integration thanks to reference edge, easily XY stackable

V-855 High-Speed Linear Stage

High Load Capacity • Cost Effective • Linear Motor
  • Long travel ranges (up to 800 mm) with narrow profile (width: 107 mm)
  • Highly dynamic, maintenance-free linear motor with velocities up to 4 m/s
  • Robust industrial design for a long lifetime
  • High-precision incremental or absolute linear encoder
  • Permanent load capacity up to 600 N
  • Ideal for gantry systems

V-857 High-Speed Linear Stage

High Load Capacity • Cost Effective • Linear Motor
  • Long travel ranges (up to 800 mm) with narrow profile (width: 132 mm)
  • Permanent load capacity up to 1000 N
  • Highly dynamic, maintenance-free linear motor with velocities up to 5 m/s
  • Robust industrial design for a long lifetime
  • High-precision incremental or absolute linear encoder
  • Ideal for gantry systems

ACS Motion Control

The Smartest Motion Control Solutions

PI is ACS Motion Control sales and support in the UK and Ireland. We offer high performance motion controller and drive solutions compatible with PI positioners.
